Varianten

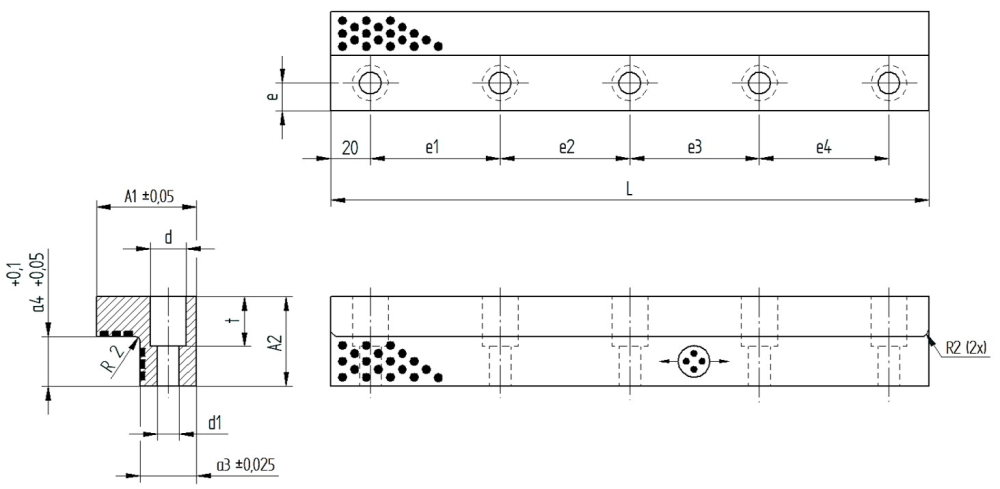

| Bestellnummer | d1 | d | L | t | e | e1 | e2 | A1 | A2 | a3 | a4 | e3 | e4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GLL04.032.150 | 11 | - | 150 | - | 11 | 55 | 55 | 32 | 30 | 22 | 15 | - | - |
| GLL04.050.350 | 11 | 18 | 350 | 25 | 14 | 80 | 75 | 50 | 45 | 28 | 25 | 75 | 80 |
| GLL04.050.250 | 11 | 18 | 250 | 25 | 14 | 70 | 70 | 50 | 45 | 28 | 25 | 70 | - |
| GLL04.032.100 | 11 | - | 100 | - | 11 | 60 | - | 32 | 30 | 22 | 15 | - | - |
| GLL04.050.300 | 11 | 18 | 300 | 25 | 14 | 65 | 65 | 50 | 45 | 28 | 25 | 65 | 65 |
| GLL04.026.150 | 9 | 15 | 150 | 9.6 | 9 | 55 | 55 | 26 | 20 | 18 | 10 | - | - |
| GLL04.026.100 | 9 | 15 | 100 | 9.6 | 9 | 60 | - | 26 | 20 | 18 | 10 | - | - |
| GLL04.026.200 | 9 | 15 | 200 | 9.6 | 9 | 55 | 50 | 26 | 20 | 18 | 10 | 55 | - |
| GLL04.032.200 | 11 | - | 200 | - | 11 | 55 | 50 | 32 | 30 | 22 | 15 | 55 | - |
| GLL04.050.200 | 11 | 18 | 200 | 25 | 14 | 55 | 50 | 50 | 45 | 28 | 25 | 55 | - |
| GLL04.032.250 | 11 | - | 250 | - | 11 | 70 | 70 | 32 | 30 | 22 | 15 | 70 | - |
